provide continuous Technical Support
after your purchase. Feel free to ask us
anything. We will try our best to solve
your problems for you. : )
of Digital Download:
1 Complete Set of Digital Blueprints of
Modern 2 Level, 3 Bed, 2 Bath House,

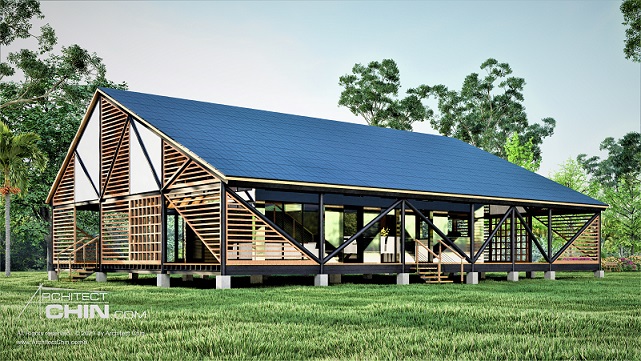

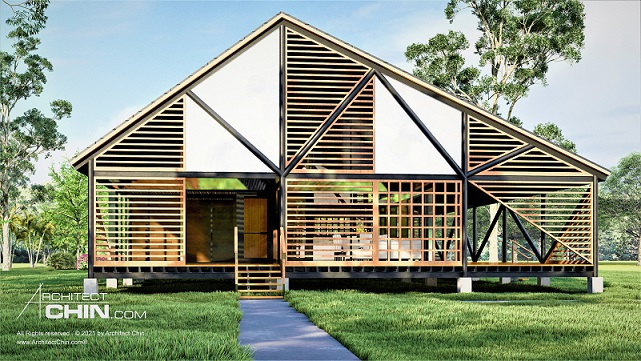

3D Color Renderings
x 4 Views
Elevations x 4,
Sections x 2,
Floor Frame Plans x
Roof Frame Plan,
Materials List with
Format in Digital
JPEG or PDF in A4 size
Diagonal Watermarks will not be visible
in the downloaded files you purchase.
of this Design:
3 Beds, 2 Bath Modern House, Flexible
Design, You can adjust the length of the
house to any suitable length. (Fixed
Width = 44')
materials are available off-the-shelf
from your local hardware stores. Sizes
are standard easily available sizes. We
dont use any specialist materials that
are hard to source.
of our roofs are sloping to eliminate
rain, snow and leaves accumulating on
them. We use roof overhangs to prevent
rain/snow splash and summer sun from
heating up the house.
designed this house for to maximize your
land use. You will get a full loft
floor, entire house under one roof.
Every part of the house gets a view
outside. The build-up area vs. materials
used is very high and efficient. In
other words, you get more living area
for your bucks.

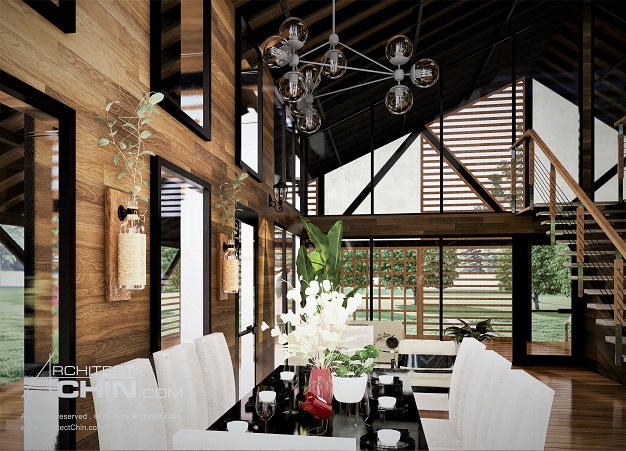

has a generous covered porch area that
can be used as dining, sitting and
exercise space. Its a very flexible use
of space. High windows are
designed for natural light penetration

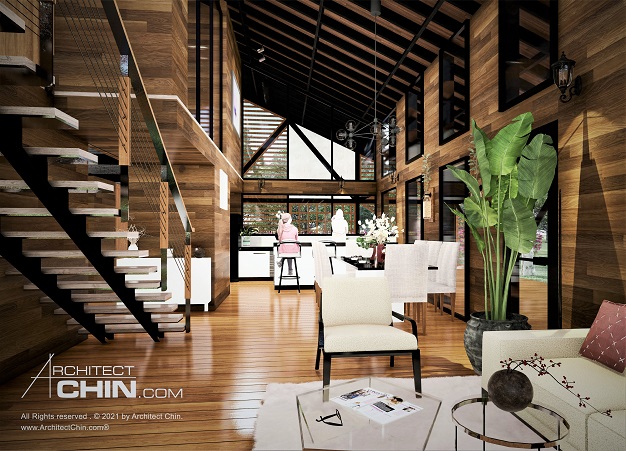

to the house. The living area, kitchen,
toilets, dining are all on the same
level. Sleeping area is at the loft
above. Solar panels can be installed on
architecture is unique and elegant. The
materials and colors are designed to
complement your environment.
It can be extended at the front and rear
end in future.
Description of House:
Closets / Storage /
3 Walk-in Closet /
Enclosed (With Walls) Building
32 x 40' =
1,280 square feet.
Covered Porch (No Walls, C-
12' Wide =
1,536 square feet.
(With Walls) Building Area
20 x 40' =
800 square feet.
Total Enclosed Area (With Walls, Level 1
+ Level 2) = 16' x
2,080 square feet.
Total Covered Footprint
44' x 64'
2,816 square feet.
Overall footprint of house
44 x 64'
= 2,816 square
Metal Frame, dry floor and wall
construction (cement fiber board, timber
board, glass, plywood, etc.), Metal or
Shingles roofing, Concrete Footings,
Metal stumps, Insulation Batts with
Sisalation Foil or Spray-On Insulation
Estimated Costs (Ballpark Figures only):
South = @ $190 to $225 /SF = $535,000 to
= @ $120 to $350 /SF = $338,000 to
= @ $220 to $330 /SF = $620,000 to
= @ $120 to $320 /SF = $338,000 to
Costs of materials only = USD120,000.
(For owners who are building this house
without hired labor)
There are 3 ways you can get a Building
A) Buy our Ready-Made
B) We Modify a
Ready-Made Plan for you or
C) Commission us to
Design a New one for you.
2a. Buy A Ready-Made Building Plan;
Instant Digital Download.
(See Etsy Shop: ArchitectChin,
3 Bed House
One house plan is licensed for 1 house
only. Add USD80 for each additional
2b. We Modify a Ready-Made Plan For You:
After you purchase a Ready-Made Plan
(Tiny House Series only) and If you need
to modify a Ready-Made Plan:
Minor Modification to Ready-Made Plan
(Width (Gable Side) remains the same,
Length is modified; i.e. the building
shape remains, it becomes longer or
a) A simple thumbnail
pencil sketch to modify it is FREE (1
Plan and 1 Elevation.).
Modification to Ready-Made Plan (Width
(Gable Side) remains the same, Length is
modified; i.e. the building shape
remains, it becomes longer or shorter.):
set of CAD drawings changes to a
standard 2 D drawings (i.e. plans x 2,
elevations x 4, and sections x 2) will
be 600 USD. No 3D
2c. Commission Us To Design A New One
(New Set of Plan. i.e. Width (Gable
Side) changes, Length is modified. i.e.
All dimensions differ from the Ready-
House #Complete Set of
House #Complete Set of
House #Complete Set of
#A New Set of Plan in 2D (i.e. Plans x
2, Elevations x 4, Sections x 2, 3
Enlarged details, Floor Frame Plans,
Roof Frame Plan, Material List) and 3D
views (2 Interior and 2 Exterior views).
1st draft will be ready in 3 weeks. Its
about 6 to 8 weeks work in total. This
is a commissioned work. No purchase of
Standard Plan is required.
Let me know which option works best for
you and I will try my best to
accommodate your request.
*You may not sell digital files using
*You may not use any of our designs in
part or in whole to create any new
digital design to sell.
*You may not share, copy, gift, resell
or modify our designs.
*You may not use your items to be
created to a Print On Demand site such
as Printful, Zazzle, or StickerMule. No
3rd party printing is allowed.
*You may not copy, sell without
purchasing our license.
*You may not sell our digital files.
* You May use this to build one house.
You may not use this to build more than
All Rights reserved. ฉ 2021 by Architect
All Images are Copyrighted
Designed by Chin Architect
