PANSY HOUSE



We provide continuous Technical Support after your purchase. Feel free to ask us anything. We will try our best to solve your problems for you. : )

WHAT YOU GET:


1 Complete Set of Digital Blueprints of Modern House, 2 Levels, 4 Beds, 1 Sofa Bed, 3 Baths House

(This is an Instant Digital Download; no shipping is required)

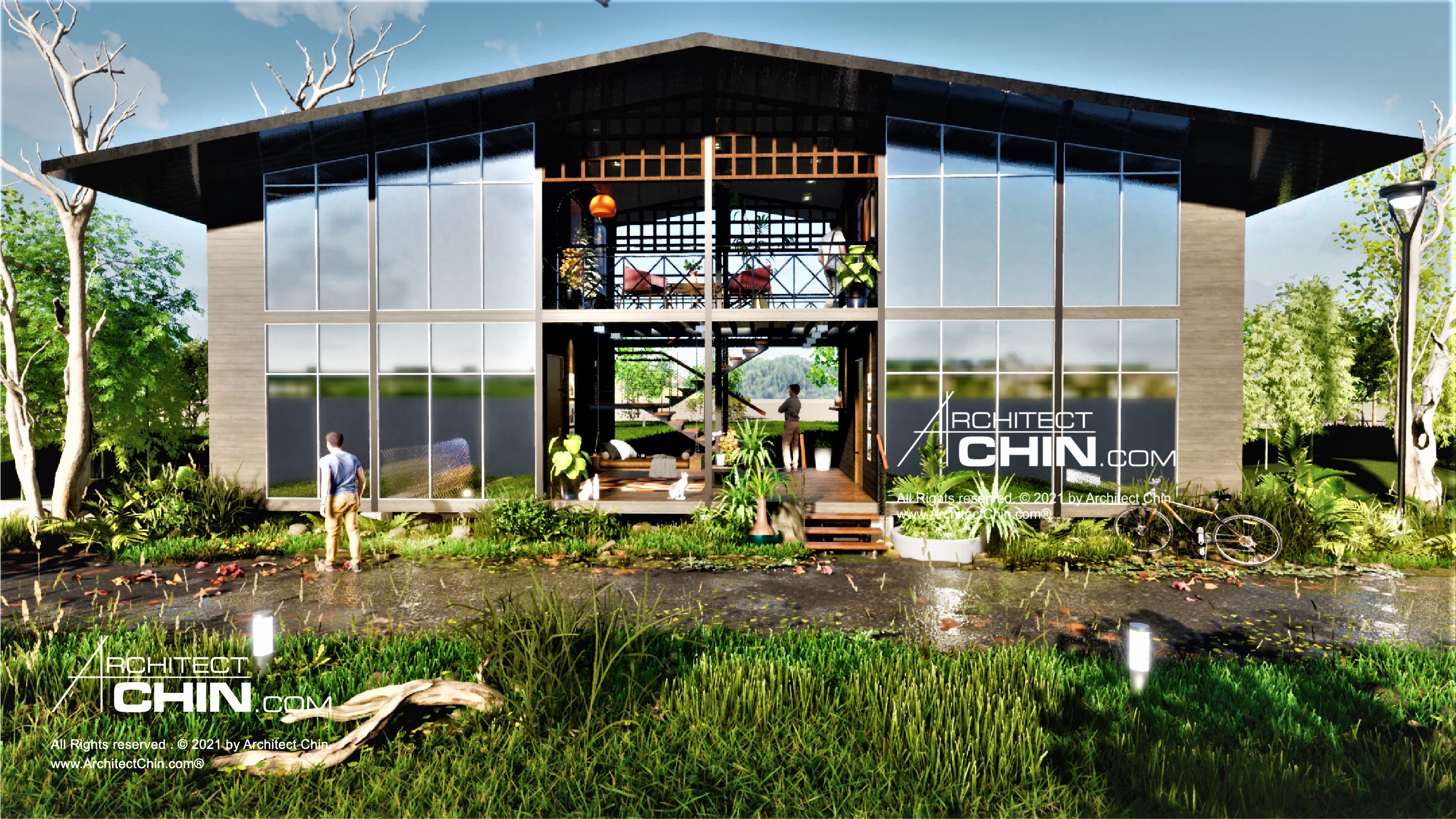

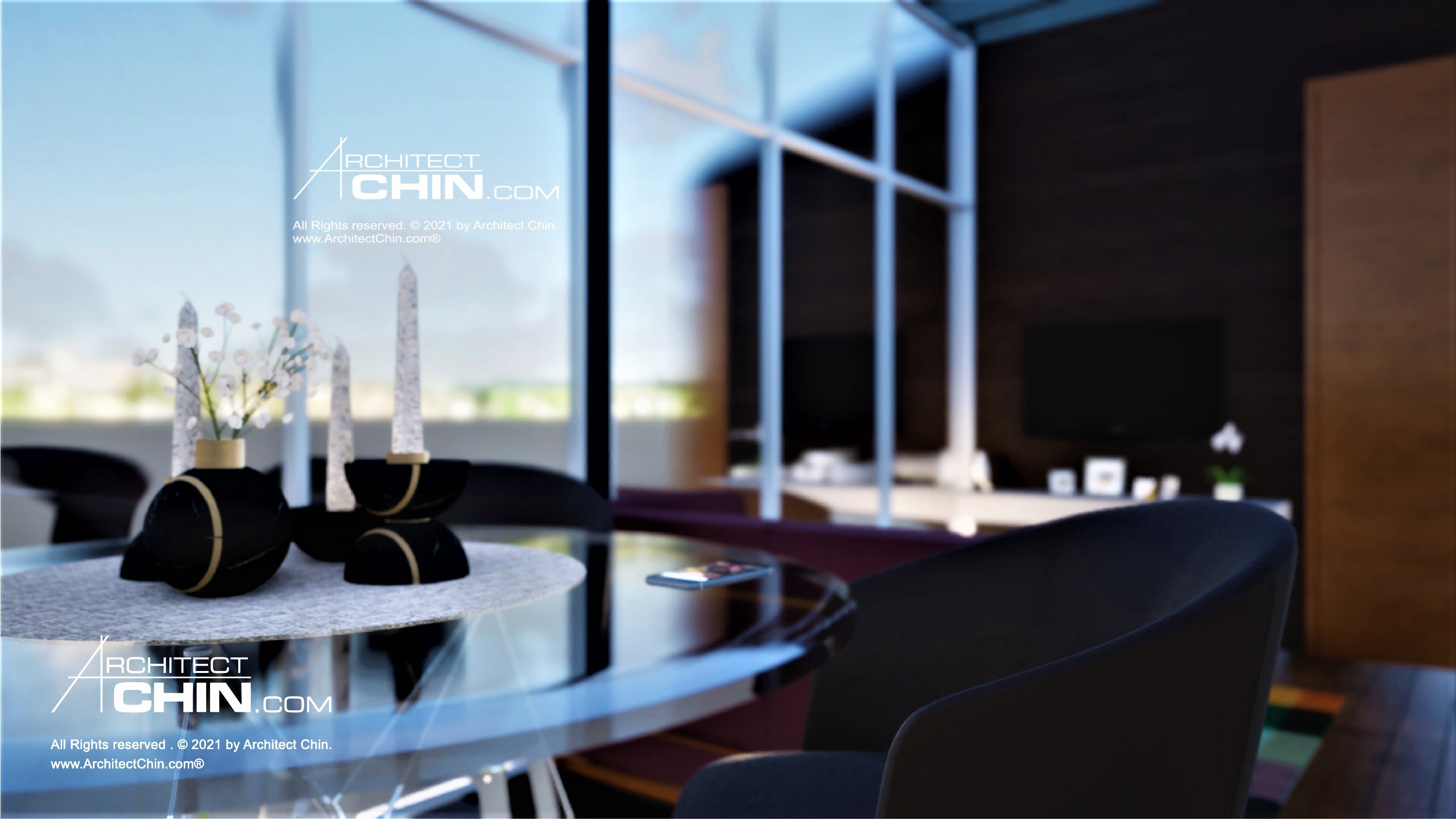

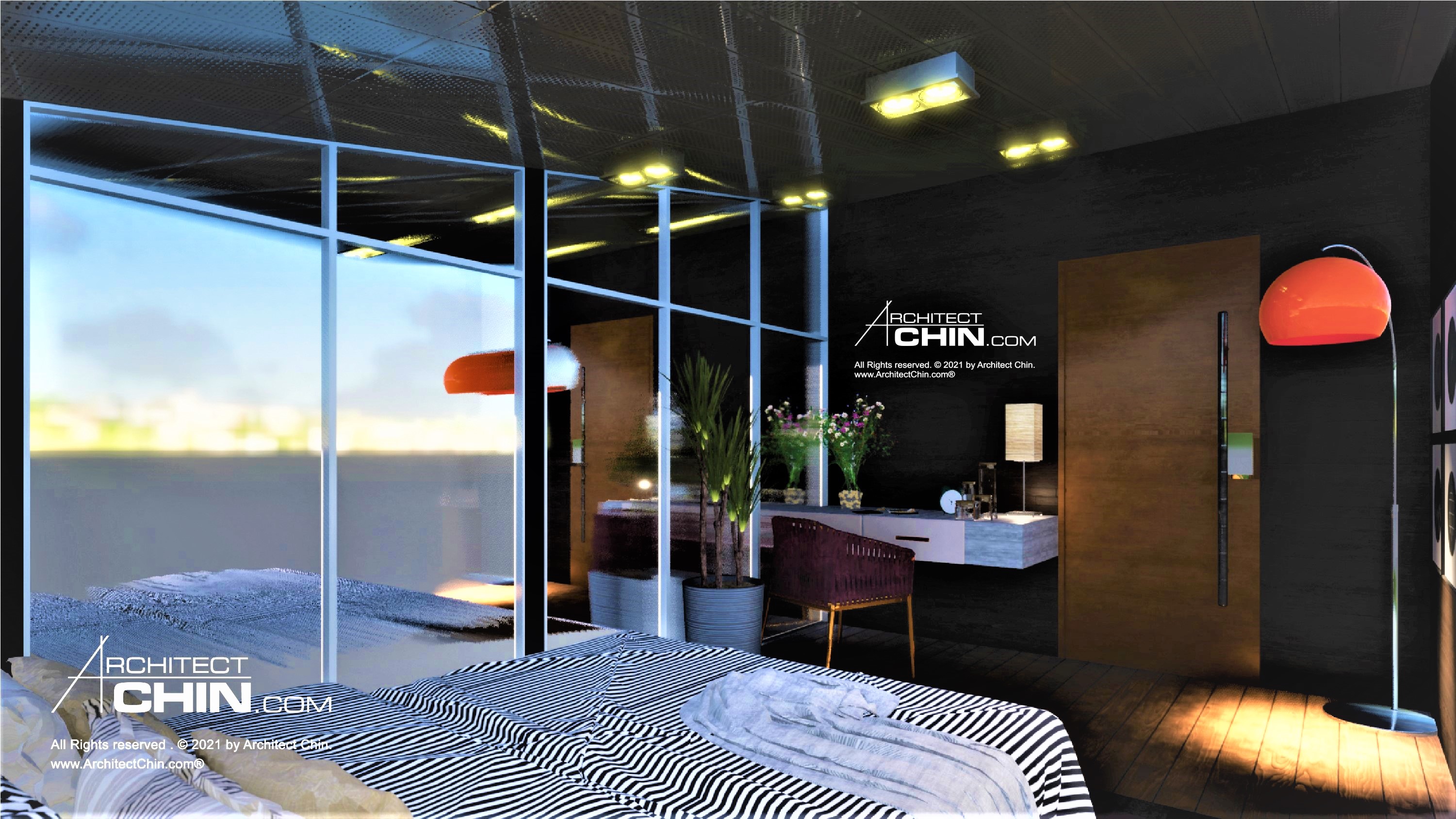

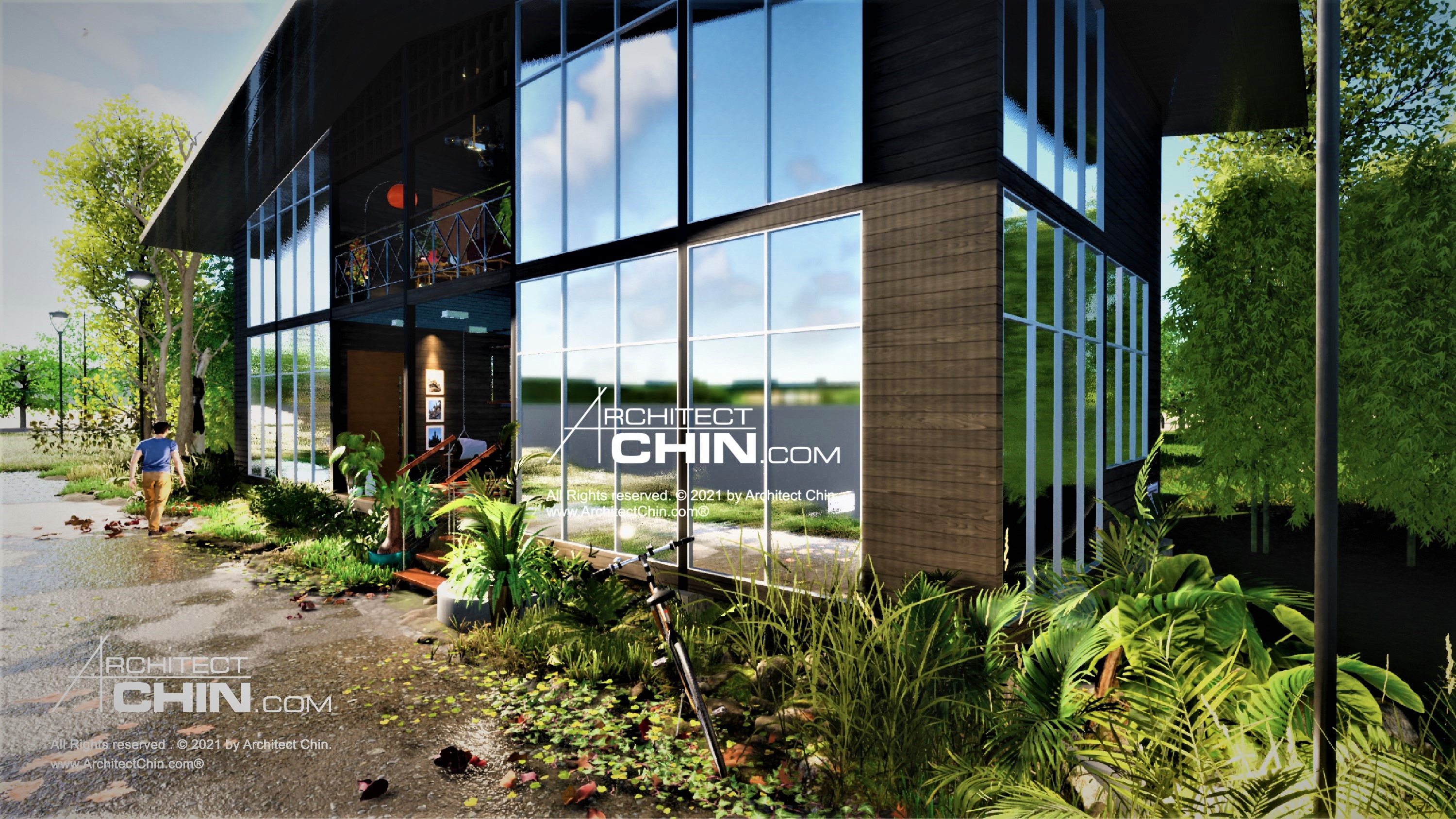

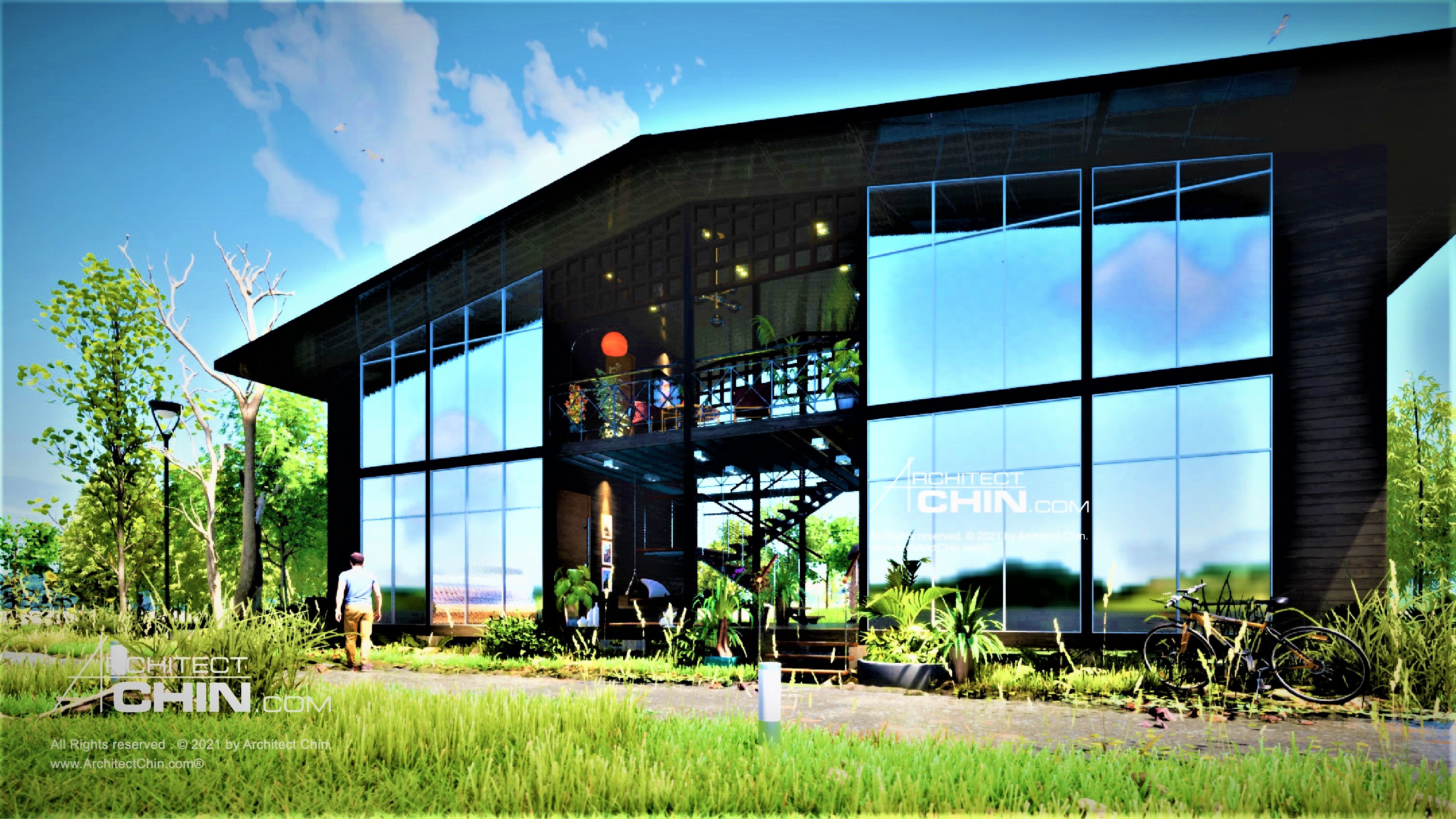

•    3D Color Renderings x 4 Views

•    Plan,

•    Loft Plan,

•    Elevations x 4,

•    Sections x 2,

•    Floor Frame Plans x 2,

•    Roof Frame Plan,

•    3 Enlarged Construction Details,

•    Materials List with estimated quantities.
•    Format in Digital JPEG or PDF, 30 to 40 pages in A4 size.

Diagonal Watermarks will not be visible in the downloaded files you purchase.

Electrical, Plumbing, Sewerage Diagrams, Interior Designs, and Kitchen Designs are sold separately.

ADVANTAGES OF THIS DESIGN:


4 Beds, 1 Sofa Bed, 3 Baths House, Flexible Design. You can adjust the length of the house to any suitable length.

(Flexible Width = 16’, Fixed Length = 48')

•    Minimum Loft Height is 6’2” (Lowest end); practical height, no need to crawl or slouch in loft.

•    Pitched Roof (No flat roof); no water leaks, reduced snow loads

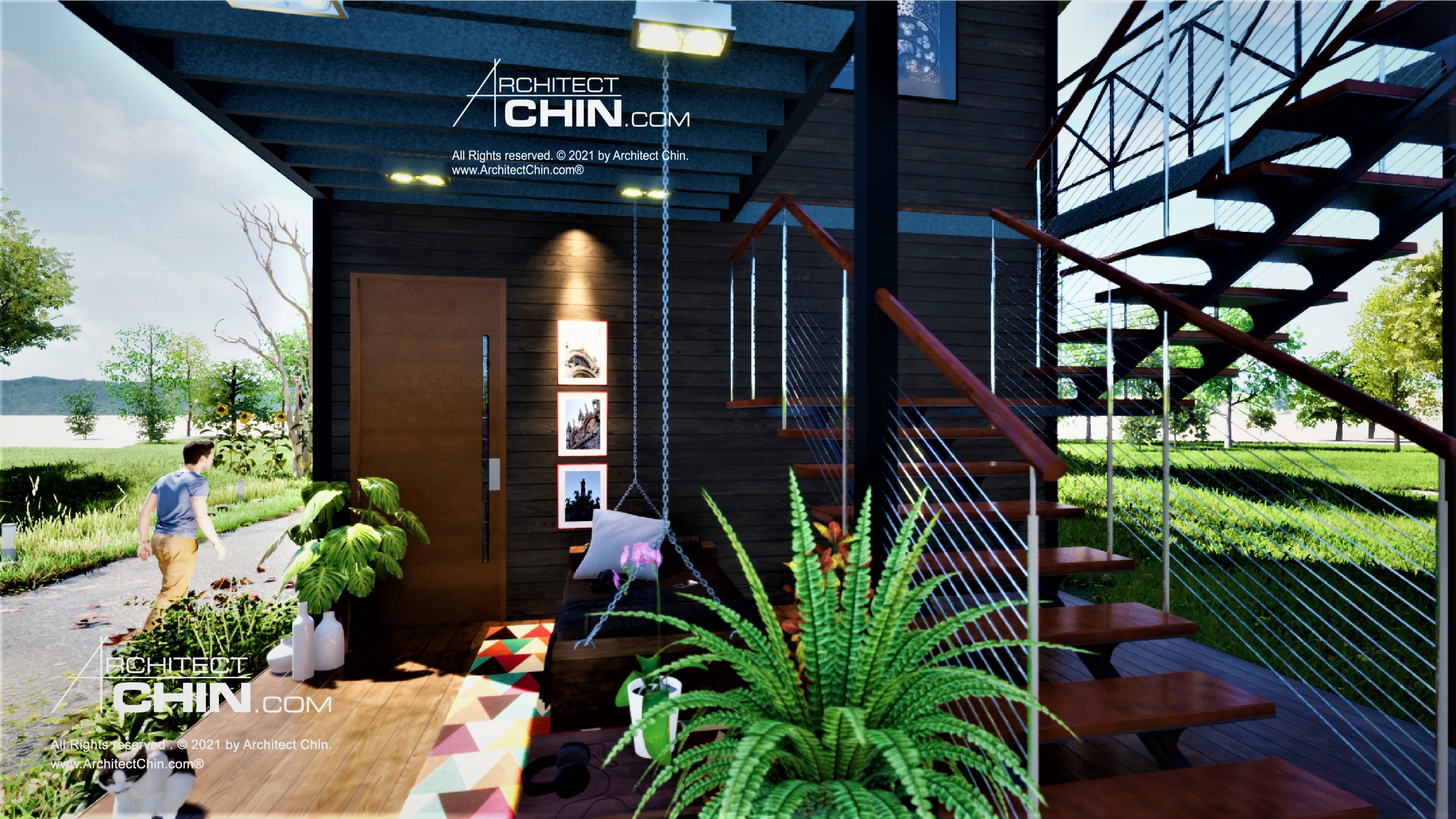

•    Proper staircases (Not ladder); Easier to use, storage below it.

•    No Valley Gutters on Roof; no leakages, minimal joints on roof, easier to construct.

•    Rectangular Plans; no odd corners, easier to build and furnish.

•    Simple plan and sections; easier to build and pre-fabricable.

•    Common of-the-shelf materials; no special materials necessary.

•    Covered porch; useful and flexible space use.

•    Proper toilet, shower and kitchen sizes; practical and user friendly

•    All Roofs, Walls and Floor can accommodate  insulation up to 6” thick

•    Stoves, wood stoves, chimneys can be added.

•    Construction joints details, framing plans, roofing plans, footing plans, Doors and Windows Schedules are included.

•    Comprehensive design drawings and material list; user friendly, easy to understand.

•    Guaranteed to comply with building codes; exchangeable or refundable if it doesn’t.

•    Flexible length; can be shorten or elongated.

All materials are available off-the-shelf from your local hardware stores. Sizes are standard easily –available sizes. We don’t use any specialist materials that are hard to source. Easy to prefab and install. Minimal in-situ works, most work can be prefabricated in a factory. Only the concrete footings need to be cast onsite. The rest of the materials can be prefabricated and delivered to site pre-built and pre-finished. All metals frames can be pre-welded in factory and will fit into the back of a lorry.

We designed this house for Time, Labor and Costs savings. The site footing casting can be done by one team of workers while the materials are being pre-built in the factory by another team of workers, thus saving time. This way you don’t have to wait until your footings are completed to start the fabricating walls and floors.  Building in a factory has many advantages such as quality and precision control. Minimal wastage. And you can work under any weather conditions. Your house can be built by 2 separate team of workers working simultaneously, saving time and costs.

All of our roofs are sloping to eliminate rain, snow and leaves accumulating on them. We use roof overhangs to prevent rain/snow splash and summer sun from heating up the house.

All Roofs, Walls, And Floors can be insulated with 2” to 6” Thick Insulation Batts, Sprayed-in Insulation Foams and Bubble Sisalation Foils. Electric or Woodstoves, Chimneys, Washers, can be installed inside. Interior space is quite spacious.

We designed this house for to maximize your land use. You will get a full loft floor, entire house under one roof. Every part of the house gets a view outside. The build-up area vs. materials used is very high and efficient.

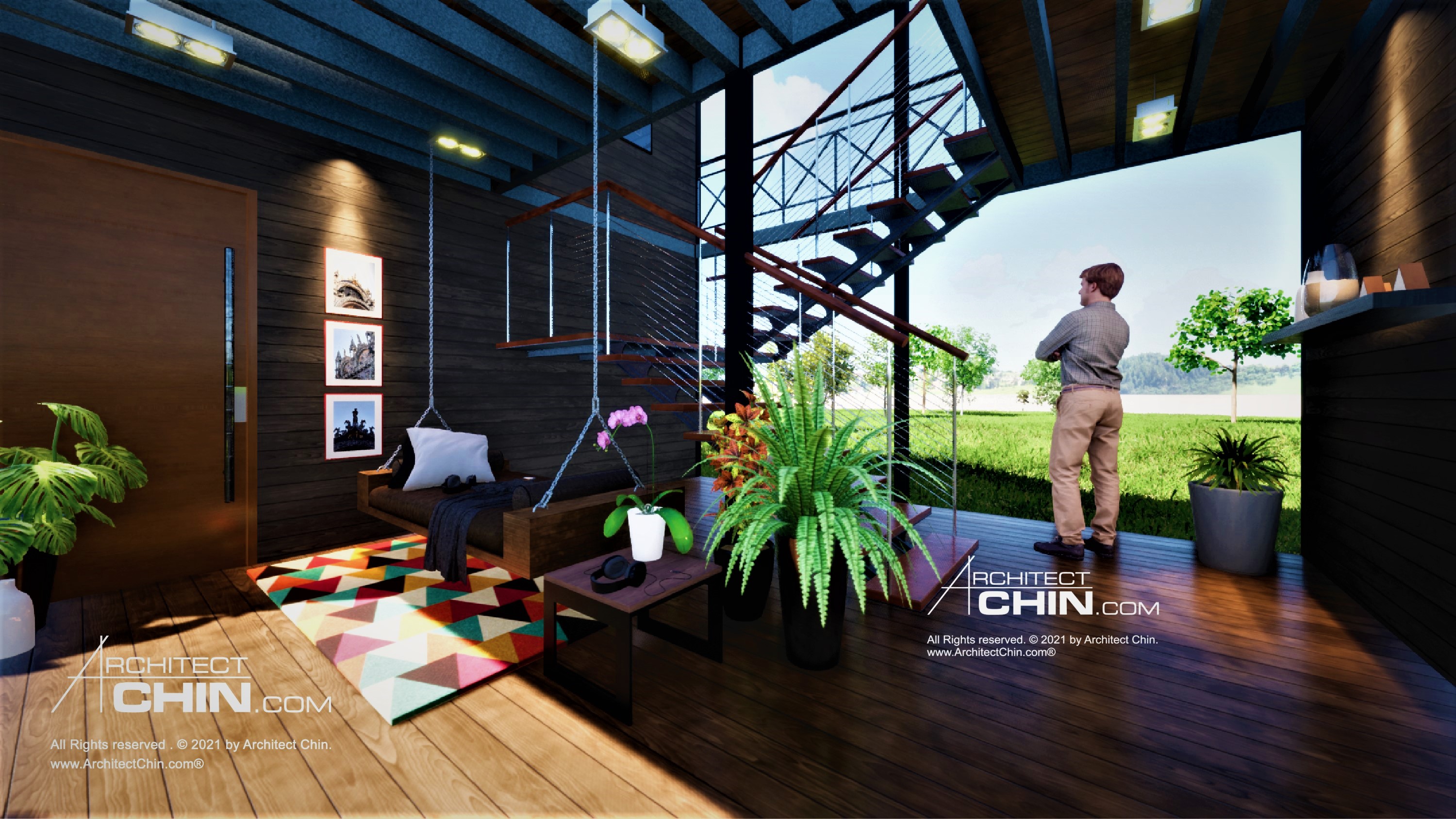

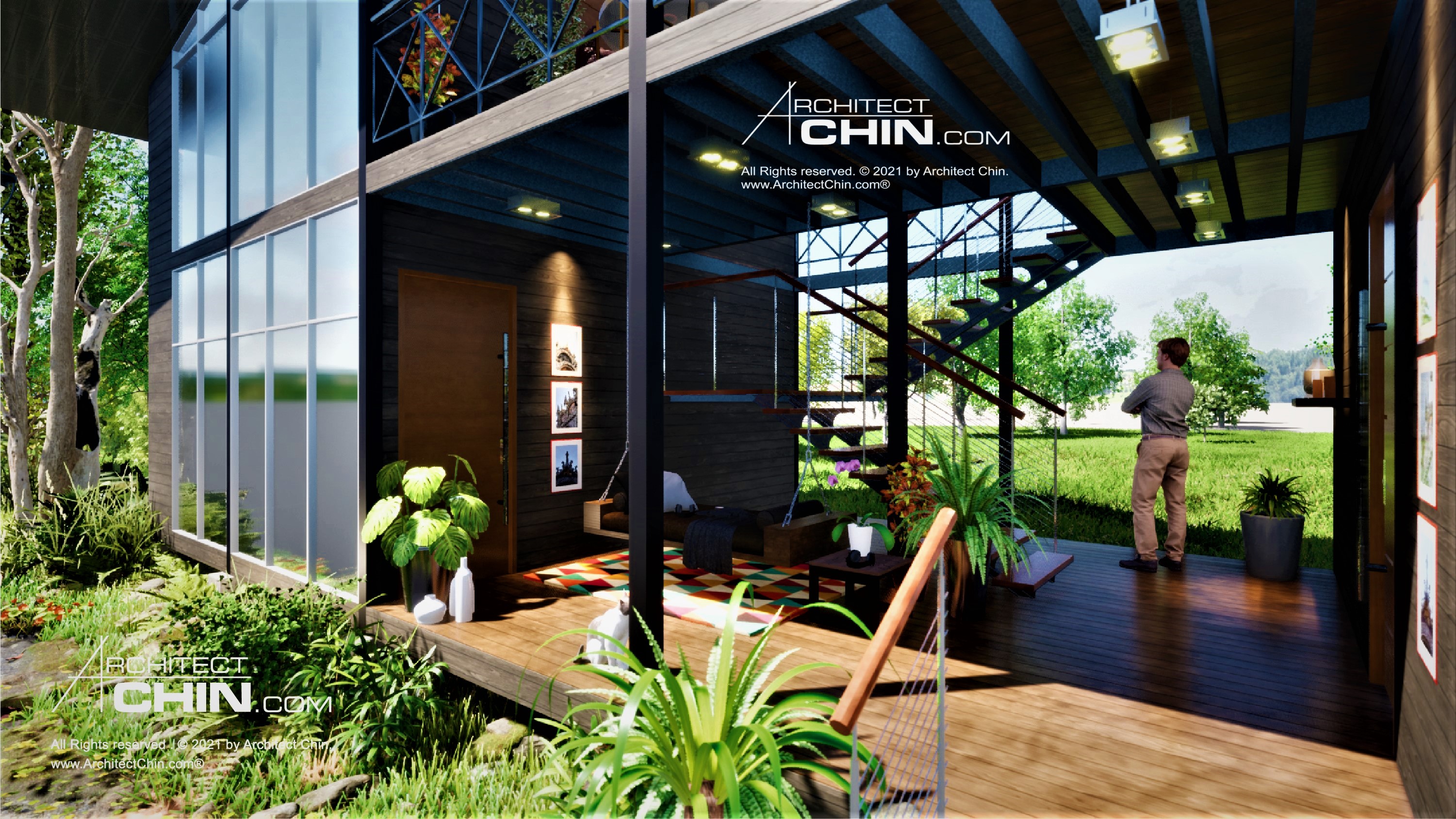

It has a generous covered porch area that can be used as dining, sitting and exercise space. It’s a very flexible use of space.  High windows are designed for natural light penetration to the house. The living area, kitchen, toilets, dining are all on the same level. Sleeping area is at the loft above. Solar panels can be installed on the roof.

The architecture is unique and elegant. The materials and colors are designed to complement your environment.

It can be extended.

DESCRIPTION OF HOUSE:


Level 1:

•    1 Covered Porch

•    2 Bedrooms

•    1 Sofa Bed

•    1 Hanging Bed

•    Living, •

•    Dining,

•    1 Bathroom,

•    Kitchen,

•    1 Laundry Utility /Closets / Storage,

Level 2 :

•    2 King Bed Bedrooms and Study Table

OR

•    2 Queen Bed Bedrooms and Study Table

OR

•    2 Single Beds Bedrooms and Study Table

•    Closet / Storage Space

•    2 Ensuites

•    2 Walk-in Wardrobes

•    1 Covered Porch

SIZES:


LEVEL 1:

Enclosed (With Walls) Interior Space                        = (16’ x 16’) x 2 = 512 square feet.

Covered Porch (No Walls)                                         = 16’ x 16’ = 256 square feet.

LEVEL 2:

Enclosed (With Walls) Interior Space                        = (16’ x 16’) x 2 = 512 square feet.

Covered Porch (No Walls)                                         = 16’ x 16’ = 256 square feet.
------------------------------------------------------------------------------------------
Total Interior Space (With Walls, Level 1 + Level 2)  = 512 + 512 = 1,024 square feet.

Total Covered Footprint Area                                     = 16 x 48 = 768 square feet.

Overall footprint of house is                                       = 16 x 48 = 768 square feet.

MATERIALS:


Metal Frame, dry floor and wall construction (cement fiber board, timber board, glass, plywood, etc.), Metal or Shingles roofing, Concrete Footings, Metal stumps, Insulation Batts with Sisalation Foil or Spray-On Insulation Foam. You can get all the materials from your local hardware stores.

ESTIMATED COSTS (Ballpark Figures only):

South = @ $190 to $225 /SF

Midwest = @ $120 to $350 /SF

Northeast = @ $220 to $330 /SF

West = @ $120 to $320 /SF

Estimated Costs of materials only = USD60, 000. (For owners who are building this house without hired labor).

The best way to get a cost estimate is to ask your local builder for the rate $/Sq Ft. Multiply that with the total size of the house and you will get a rough estimate of the whole lot. Material cost is around one third of that.

BUILDING DESIGN:


There are 3 ways you can get a Building Design:

A)    Buy our Ready-Made Plan or

B)    We Modify a Ready-Made Plan for you or

C)    Commission us to Design a New one for you.

2a. Buy A Ready-Made Building Plan; Instant Digital Download. (See Etsy Shop: ArchitectChin, https://www.etsy.com/shop/ArchitectChin?section_id=30842512):

•    Tiny House Plan             250

•    3 Bed House Plan            420
One house plan is licensed for 1 house only. Add USD80 for each additional house planned.

2b. We Modify a Ready-Made Plan For You:

After you purchase a Ready-Made Plan (Tiny House Series only) and If you need to modify a Ready-Made Plan:

Minor Modification to Ready-Made Plan (Width (Gable Side) remains the same, Length is modified; i.e. the building shape remains, it becomes longer or shorter.):

a)    A simple thumbnail pencil sketch to modify it is FREE (1 Plan and 1 Elevation.).

OR

Minor Modification to Ready-Made Plan (Width (Gable Side) remains the same, Length is modified; i.e. the building shape remains, it becomes longer or shorter.):

A set of CAD drawings changes to a standard 2 D drawings (i.e. plans x 2, elevations x 4, and sections x 2) will be 600 USD. No 3D views.

2c. Commission Us To Design A New One For You:

(New Set of Plan. i.e. Width (Gable Side) changes, Length is modified. i.e. All dimensions differ from the Ready- Made Plans):

•    1 Level House    #Complete Set of Drawings      $1,250

#A New Set of Plan in 2D (i.e. Plans x 2, Elevations x 4, Sections x 2, 3 Enlarged details, Floor Frame Plans, Roof Frame Plan, Material List) No 3D views

The 1st draft will be ready in 3 weeks. It’s about 4 to 6 weeks work in total. This is a commissioned work. No purchase of Standard Plan is required.

Pencil Sketches will be ready in 1 or 2 Days for your comments first.

If OK, we will proceed to CAD Drawings.

Let me know which option works best for you and I will try my best to accommodate your request.

You can check out our other House Plans here: https://www.etsy.com/shop/ArchitectChin?ref=seller-platform-mcnav&section_id=30842512

And Our Website: http://www.architectchin.com/index.html

I will personally reply your messages within 1 day. We offer friendly, helpful and honest services.

We will give you continuous technical support.

Our designs comply with building codes in all countries. (Including USA and Canada).

We have 34 years of experience in architecture. We stand by our quality.

If you are not happy with our ready-made plans we can exchange another one for you free of charge or und you (minus Etsy's fees). No issue.

WHO AM I?


I am Architect Chin, from Malaysia, educated in Australia.  Designing is my passion. It is what I do every day.

I have been doing architecture for 34 years. Need that vacation… : )

We have worked on houses, condominiums, offices, swimming pools, shops, government buildings, interior designs, renovations, hotels, resorts, pre-fab houses, tiny and big houses, etc.

We have an excellent track record and a solid reputation.

You can trust us with our services. We may not be the cheapest but we promise to delivery excellent work to you.

Feel free to ask me anything if unclear. Thanks.

Regards,
Architect Chin
