We provide continuous Technical Support after your purchase. Feel free to ask us anything. We will try our best to solve your problems for you. : )


1 Complete Set of Digital Blueprints of Modern 2 Level, 3 Bed, 2 Bath House,

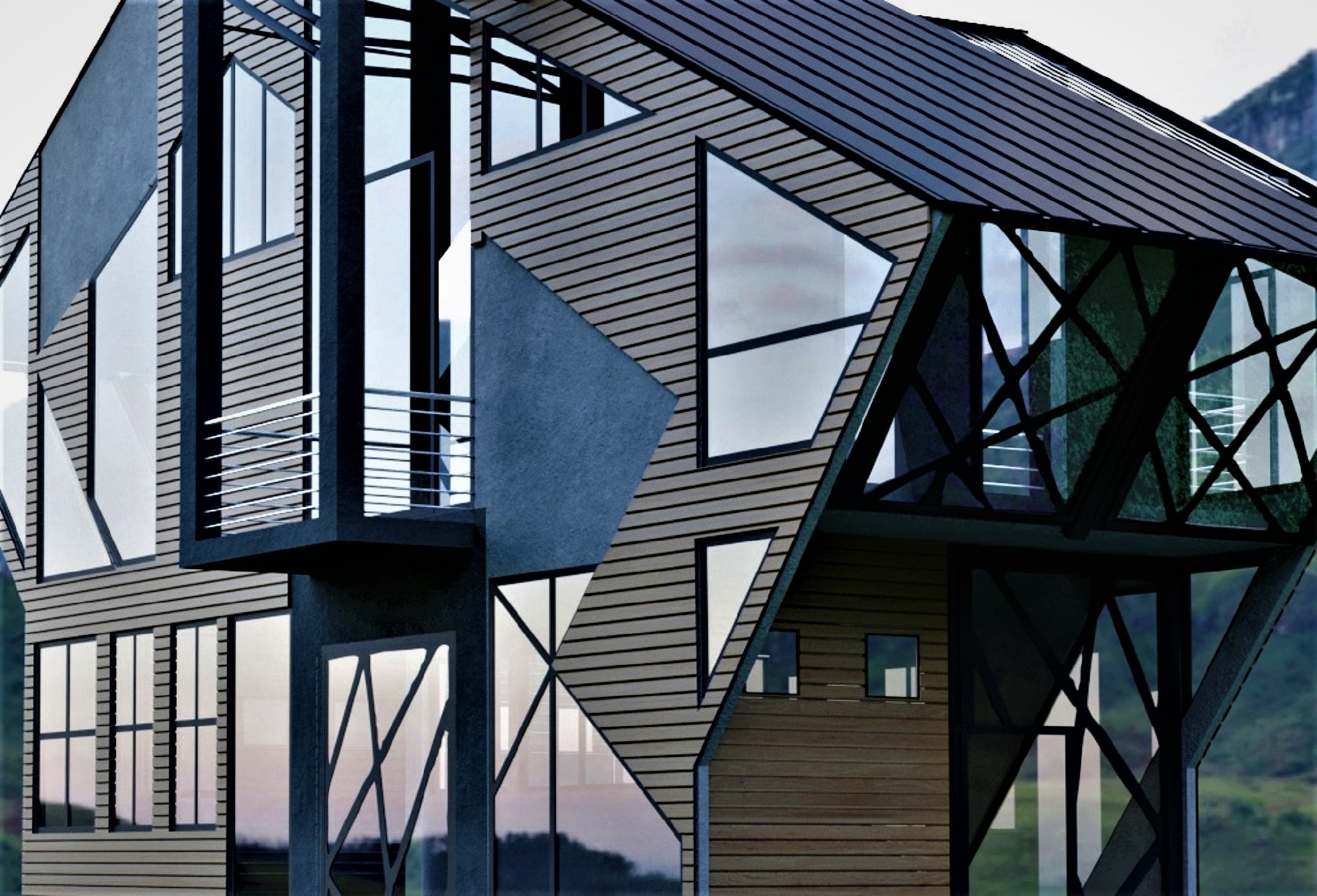

•    3D Color Renderings x 3 Views

•    Plan,

•    Loft Plan,

•    Elevations x 4,

•    Sections x 2,

•    Floor Frame Plans x 2,

•    Roof Frame Plan,

•    3 Enlarged Construction Details,

•    Materials List with estimated quantities

•    Format in Digital PDF in A4 size

Diagonal Watermarks will not be visible in the downloaded files you purchase.


1 Bed, 1 Sofa Bed, 2 Baths, 1 Living, 1 Sitting/Study, Covered Porch, Laundry, Closets, Kitchen, Dining, 2 Levels, Modern House, Flexible Design, You can adjust the length of the house to any suitable length. (Fixed Width = 24'). Small footprint, efficient space usage.

All materials are available off-the-shelf from your local hardware stores. Sizes are standard easily –available sizes. We don’t use any specialist materials that are hard to source.

All of our roofs are sloping to eliminate rain, snow and leaves accumulating on them. We use roof overhangs to prevent rain/snow splash and summer sun from heating up the house.

We designed this house for to maximize your land use. You will get a full loft floor, entire house under one roof. Every part of the house gets a view outside. The build-up area vs. materials used is very high and efficient.

It has a covered porch area that can be used as dining, sitting and exercise space. It’s a very flexible use of space.  High windows are designed for natural light penetration to the house. The living area, kitchen, toilets, dining are all on the same level. Sleeping area is at the loft above. Solar panels can be installed on the roof.

The architecture is unique and elegant. The materials and colors are designed to complement your environment.

It can be extended at the front and rear end in future.


Level 1:

•    Covered Porch

•    Living,

•    Dining,

•    1 Sofa Bed,

•    Bathroom,

•    Kitchen,

•    Laundry,

•    Bath,

•    Closets / Storage / Pantry,

Level 2:

•    1 Bedroom,

•    Sitting /Study Area,

•    Bath,

•    Closet / Storage,

•    Sloping Ceiling looking down to Living room below


Level 1:

Enclosed (With Walls) Building Area                         = 24’ x 32’ (Level 1) + 10’ x 32’ (Level 2) = 1,088 square feet.

Covered Porch (No Walls)                                         = 12' x 24’ = 288 square feet.

Level 2:

Enclosed (With Walls) Building Area                          = 10’ x 32' = 320 square feet.
Total Interior Area (With Walls, Level 1 + Level 2)     = 1,088 square feet.

Total Useable Area                                                     = 1,088 + 288 = 1,376 square feet.
Overall footprint of house is                                        = 24' x 44' = 1,056 square feet.


Metal Frame, dry floor and wall construction (cement fiber board, timber board, glass, plywood, etc.), Metal or Shingles roofing, Concrete Footings, Metal stumps, Insulation Batts with Sisalation Foil or Spray-On Insulation Foam.

ESTIMATED COSTS (Ballpark Figures only):

South = @ $190 to $225 /SF

Midwest = @ $120 to $350 /SF

Northeast = @ $220 to $330 /SF

West = @ $120 to $320 /SF

Costs of materials only = USD55, 000. (For owners who are building this house without hired labor)


There are 3 ways you can get a Building Design:

A)    Buy our Ready-Made Plan or
B)    We Modify a Ready-Made Plan for you or

C)    Commission us to Design a New one for you.

2a. Buy A Ready-Made Building Plan; Instant Digital Download.
      (See Etsy Shop: ArchitectChin, https://www.etsy.com/shop/ArchitectChin?section_id=30842512):

•    Tiny House Plan             250

•    3 Bed House Plan            420

One house plan is licensed for 1 house only. Add USD80 for each additional house planned.

2b. We Modify a Ready-Made Plan For You:
      After you purchase a Ready-Made Plan (Tiny House Series only) and If you need to modify a Ready-Made Plan:
      Minor Modification to Ready-Made Plan (Width (Gable Side) remains the same, Length is modified; i.e. the building shape remains, it
      becomes longer or shorter.):

a)    A simple thumbnail pencil sketch to modify it is FREE (1 Plan and 1 Elevation.).


Minor Modification to Ready-Made Plan (Width (Gable Side) remains the same, Length is modified; i.e. the building shape remains, it becomes longer or shorter.):

A set of CAD drawings changes to a standard 2 D drawings (i.e. plans x 2, elevations x 4, and sections x 2) will be 600 USD. No 3D views.

2c. Commission Us To Design A New One For You:
      (New Set of Plan. i.e. Width (Gable Side) changes, Length is modified. i.e. All dimensions differ from the Ready- Made Plans):

•    1 Level House    #Complete Set of Drawings            3,738

•    2 Levels House    #Complete Set of Drawings            4,438

•    3 Levels House    #Complete Set of Drawings            4,938

#A New Set of Plan in 2D (i.e. Plans x 2, Elevations x 4, Sections x 2, 3 Enlarged details, Floor Frame Plans, Roof Frame Plan, Material List) and 3D views (2 Interior and 2 Exterior views).

The 1st draft will be ready in 3 weeks. It’s about 6 to 8 weeks work in total. This is a commissioned work. No purchase of Standard Plan is required.

Let me know which option works best for you and I will try my best to accommodate your request.


Architect Chin


Terms of Use:

*You may not sell digital files using this product.

*You may not use any of our designs in part or in whole to create any new digital design to sell.

*You may not share, copy, gift, resell or modify our designs.

*You may not use your items to be created to a Print On Demand site such as Printful, Zazzle, or StickerMule. No 3rd party printing is allowed.

*You may not copy, sell without purchasing our license.

*You may not sell our digital files.

* You May use this to build one house. You may not use this to build more than one house.
